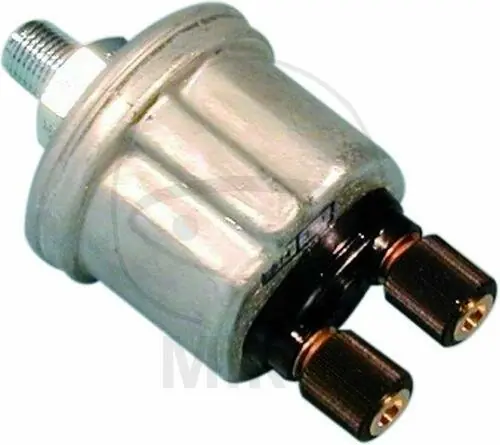

Billig Oil pressure sensor with warning contact M10x1 0-10 bar

VDO pressure transducer with warning contact, via ground.

For measuring gas or liquid pressure in conjunction with an electrical indicator.

The electrical resistance of these electromechanical pressure sensors changes from 10-184 Ohm depending on the pressure.

The warning contact closes when the pressure drops.

Measuring range: 10 bar

Warning contact/switching point: 0.5 bar ±0.15 bar

Thread: M10 x 1 taper short

Length, L1: 19.5 mm

Length, L2: 11.0 mm

Connection type: 2 knurled nuts M4

Rated voltage: 6 V to 24 V

Overpressure safety: max. 30 bar or 50 bar (briefly up to 2 seconds)

Warning contact: closes when pressure drops

Switching capacity of the warning contact: max. 5 W induction-free

Operating temperature: -25 °C to 100 °C (up to 120 °C max. 1 hour at the connection thread)
